發現一個webman的websocket的時候，傳輸gzip數據，解析數據會出現 gzdecode data error

zh7314 更新于2022-09-21

<!DOCTYPE html>
<html>
<meta charset="UTF-8">
<script src="./../dist/pako.js"></script>
<script>

const obj = [
  { foo: 'bar', baz: 'baz' },
  { abra: 1, cadabra: 22222222222222222 }
]

let result = pako.gzip(encodeURIComponent(JSON.stringify(obj)), { to: "string" });

function send(result) {
  var xhr = new XMLHttpRequest;

  xhr.open('POST', 'http://www.yd.com/open/test', true);
  xhr.send(result);
}
send(result);

</script>
</html>
<body>
Sending objects to server, run server code to see result.
</body>

php接收端
laravel8框架 php8

            $in = file_get_contents("php://input");
            p($in);
            $res = json_decode(urldecode(gzdecode($in)), true);
            p($res);

可以正常接受解壓數據

但是在webman socket數據就會出問題
gzdecode 出現data error

/*
     * {
    createTime: 命令發送時間
    data:{} 修改的命令
    id: "7a"   websocket的id
    returnMessage: "success"
    status: "0"  0告訴前端需要根據data的命令修改  1無意義
    type: 0：連接成功，1：發送給當前連接的用戶，2：發送信息給其他用戶，3：發送選區位置信息，999：用戶連接斷開
    username: 用戶名
    }
     * ?m?A? EO?^¨??′r?.*?a￥?ú??qá????g??R ?è?8c._uá*??efy Taafví?@+[?&??#?àA@*^ò.ü<?òD?t?2?W????tT· ÷?a?×kDZ??? ?5Tk(K?O?a8?′?hC·R bl±?Y? u?W
     */
    public function onMessage(TcpConnection $connection, $data)
    {
        $key = $this->getUid($connection->getLocalIp(), $connection->getLocalPort(), $connection->worker->workerId, $connection->worker->id, $connection->id);

        $return = [];
        $return['createTime'] = time();
        $return['data'] = null;
        $return['returnMessage'] = 'success';
        $return['status'] = '1';
        $return['type'] = 0;
        $return['id'] = $key;
        $return['username'] = $key;

        if ($data == 'rub') {
            //心跳不回復
        } else {
            $in = json_decode(urldecode(gzdecode($data)), true);

//            $this->broadcast($key, $data);
//            $connection->send(json_encode($return));
//            $connection->send($data);
        }
    }

數據格式是 pako加密的

let result = pako.gzip(encodeURIComponent(JSON.stringify(obj)), { to: "string" });

接受到的數據格式

目前懷疑是回調的onMessage $data數據返回有問題導致無法正解析

2022年9月21日09:52:36

終于解決了webman對接問題
因為現在php8 default_charset = "UTF-8" PHP的默認處理字符集是utf-8
但是gzip的默認字符集是 ISO-8859-1， gzdecode函數處理也需要 ISO-8859-1字符集
參考了java版本的代碼發現他也是轉還了字符集
public static String uncompress(String str) throws IOException {
        if (str == null || str.length() == 0) {
            return str;
        }
        ByteArrayOutputStream out = new ByteArrayOutputStream();
        ByteArrayInputStream in = new ByteArrayInputStream(str.getBytes("ISO-8859-1"));
        GZIPInputStream gunzip = new GZIPInputStream(in);
        byte[] buffer = new byte[256];
        int n;
        while ((n = gunzip.read(buffer)) >= 0) {
            out.write(buffer, 0, n);
        }
        // toString()使用平臺默認編碼，也可以顯式的指定如toString("GBK")
        return out.toString();
    }
str.getBytes("ISO-8859-1")，我就嘗試轉換了一下

$content = mb_convert_encoding($data, 'ISO-8859-1', 'utf-8');
var_dump(json_decode(urldecode(gzdecode($content)), true));
然后就解析成功了，現在php對接Luckysheet也可以了

 1689  2 0

2個回答

xiuwang 2022-09-01

不發websocket前端代碼？

zh7314 2022-09-02

懷疑是socket通信的時候，接受的數據有問題
meows 2022-09-02

你發的截圖，它本身一個Http 請求？

xiuwang 2022-09-02

我覺得可能是你前端代碼問題，你沒發websocket前端代碼，所以問你前端代碼在哪？結果你還是沒貼...

我測試沒問題

process/Ws.php

<?php
namespace process;

class Ws
{
    public function onMessage($con, $data)
    {
        var_export(json_decode(urldecode(gzdecode($data)), true));
    }
}

config/process.php

<?php
return [
    'ws' => [
        'handler' => \process\Ws::class,
        'listen' => 'websocket://0.0.0.0:1234'
    ]
];

前端代碼

const obj = [
  { foo: 'bar', baz: 'baz' },
  { abra: 1, cadabra: 22222222222222222 }
]
let result = pako.gzip(encodeURIComponent(JSON.stringify(obj)), { to: "string" });
ws = new WebSocket('ws://127.0.0.1:1234');
ws.onopen = function(){
   ws.send(result);
}

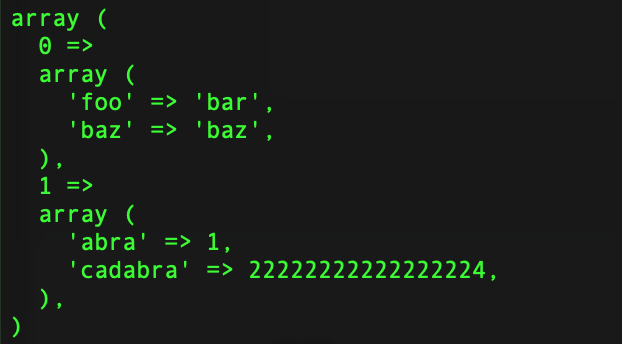

打印結果
