壓測connections 最大只有2048

yifenbushe 2022-03-22

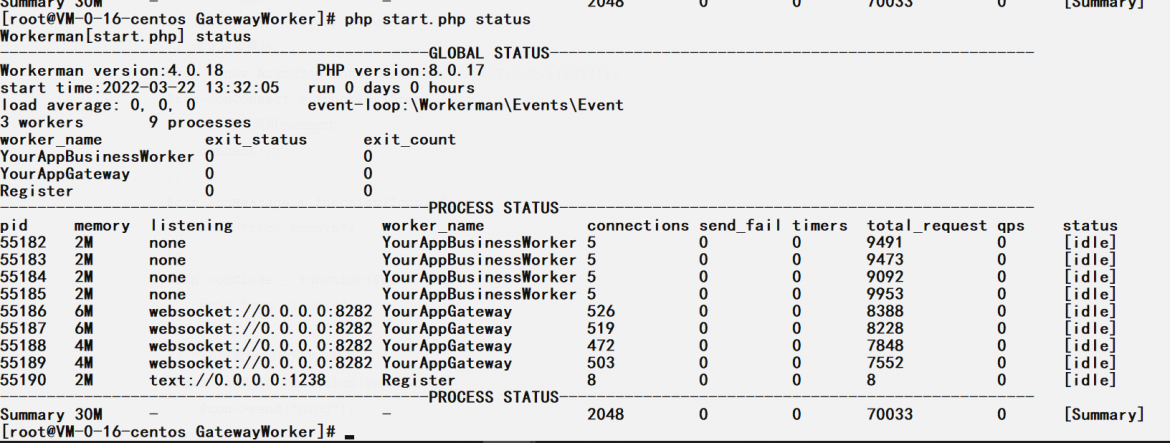

使用workerman壓測腳本測試gateway，只有2048個connections，這就是極限了嗎？已經按照要求安裝擴展和優化內核，環境是centos8/php8

 1702  4 1

4個回答

liziyu 2022-03-22

mark

暫無評論

walkor 2022-03-22

打賞

貼下壓測腳本

yifenbushe 2022-03-22

[root@VM-0-16-centos GatewayWorker]# cat vendor/test.php
<?php
require __DIR__ . '/workerman/workerman/Autoloader.php';
use Workerman\Worker;
use Workerman\Lib\Timer;
use Workerman\Connection\AsyncTcpConnection;

$worker = new Worker();
$worker->onWorkerStart = 'connect';
function connect()
{
static $count = 0;
// 2000個鏈接
if ($count++ >= 2000) return;
// 建立異步鏈接
$con = new AsyncTcpConnection('ws://127.0.0.1:8282');
$con->onConnect = function($con)
{
// 遞歸調用connect
connect();
};
$con->onMessage = function($con, $msg)
{
echo "recv $msg\n";
};
$con->onClose = function($con)
{
echo "con close\n";
};
// 當前鏈接每10秒發個心跳包
Timer::add(10, function()use($con)
{
$con->send("ping");
});
$con->connect();
echo $count, " connections complete\n";

}
Worker::runAll();

?>
[root@VM-0-16-centos GatewayWorker]#
walkor 2022-03-22
// 2000個鏈接 if ($count++ >= 2000) return;

你貼的壓測腳本里限制了，最多發出2000連接。
yifenbushe 2022-03-22

多謝walkor老師，這么晚了還沒休息回答問題，贊一個?。?！
現在數量上來，但是connections一直在1.5萬和3千左右跳動變化，這個正常嗎
yifenbushe 2022-03-22

補充下資源占用情況
top - 23:50:39 up 6:28, 3 users, load average: 3.24, 2.22, 1.05
Tasks: 130 total, 4 running, 126 sleeping, 0 stopped, 0 zombie
%Cpu0 : 28.2 us, 19.9 sy, 0.0 ni, 45.5 id, 0.3 wa, 0.7 hi, 5.3 si, 0.0 st
%Cpu1 : 24.8 us, 65.4 sy, 0.0 ni, 4.4 id, 0.0 wa, 1.0 hi, 4.4 si, 0.0 st
MiB Mem : 3736.8 total, 1149.5 free, 1010.3 used, 1577.0 buff/cache
MiB Swap: 0.0 total, 0.0 free, 0.0 used. 2444.0 avail Mem

PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
76296 root 20 0 423056 140392 5144 R 83.7 3.7 0:03.15 php
74723 root 20 0 318372 36112 5368 R 8.6 0.9 0:32.51 php
74722 root 20 0 316156 33856 5368 S 8.3 0.9 0:31.50 php
74724 root 20 0 316156 33860 5368 R 8.3 0.9 0:30.81 php
74725 root 20 0 316156 33856 5368 S 8.0 0.9 0:31.09 php
74718 root 20 0 296804 14360 4984 S 4.3 0.4 0:14.81 php
74719 root 20 0 296804 14360 4984 S 4.3 0.4 0:14.86 php
74720 root 20 0 296804 14360 4984 S 4.3 0.4 0:14.75 php
74721 root 20 0 296804 14360 4984 S 4.0 0.4 0:14.73 php
yifenbushe 2022-03-22

還有優化空間嗎
walkor 2022-03-23

配置好的話gatewayWorker單機支持10萬連接很輕松。
但是壓測腳本最多能發出2萬左右的連接，因?yàn)閴簻y腳本發起連接會消耗本地端口，默認本機端口就大概2萬可用。

walkor 2022-03-23

打賞

業務邏輯

class Events
{
    public static function onConnect($client_id)
    {
        Gateway::sendToClient($client_id, "Hello $client_id\r\n");
    }
}

壓測腳本

<?php
require __DIR__ . '/vendor/autoload.php';
use Workerman\Worker;
use Workerman\Lib\Timer;
use Workerman\Connection\AsyncTcpConnection;

$worker = new Worker();
$worker->onWorkerStart = 'connect';
function connect()
{
    static $count = 0;
    // 20000個鏈接
    if ($count++ >= 20000) return;
    // 建立異步鏈接
    $con = new AsyncTcpConnection('ws://127.0.0.1:5555');
    $con->onConnect = function($con)
    {
        // 遞歸調用connect
        connect();
    };
    $con->onMessage = function($con, $msg)
    {
        //echo "recv $msg\n";
    };
    $con->onClose = function($con)
    {
        echo "con close\n";
    };
    // 當前鏈接每10秒發個心跳包
    Timer::add(10, function()use($con)
    {
        $con->send("ping");
    });
    $con->connect();
    echo $count, " connections complete\n";

}
Worker::runAll();

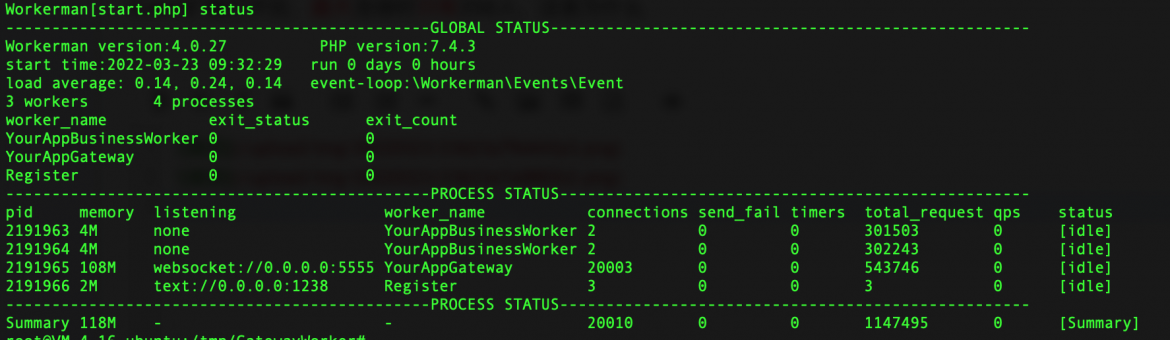

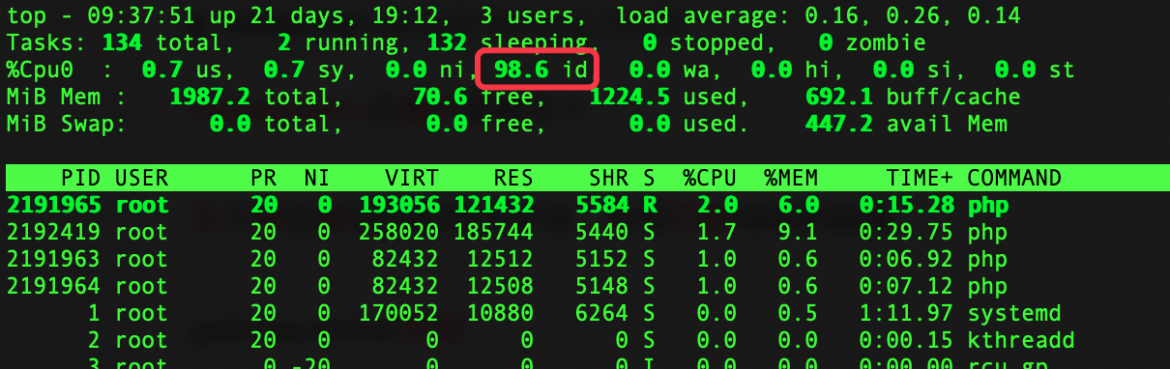

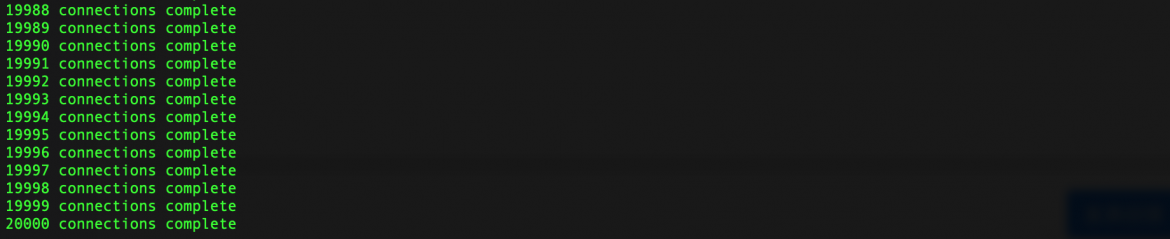

我這1核2G輕服務器127.0.0.1壓測輕松2萬連接，維持這2萬連接cpu占用2%左右，穩定無波動。

yifenbushe 2022-03-23

有做其他優化嗎？Event.php按照您這么寫完，還是原來那個樣，connections再1萬上下浮動特別大，感覺不穩定
walkor 2022-03-23

沒做其它優化
yifenbushe 2022-03-23

能說下您服務系統及PHP版本嗎？不行我重裝下

walkor 2022-03-23

PHP 7.4.3 (cli) (built: Mar  2 2022 15:36:52) ( NTS )
Copyright (c) The PHP Group
Zend Engine v3.4.0, Copyright (c) Zend Technologies
    with Zend OPcache v7.4.3, Copyright (c), by Zend Technologies

Ubuntu Server 20.04 LTS 64bit
CPU: 1核 內存: 2GB

walkor 2022-03-24

打賞

壓測有問題繼續在這里回復追加提問，不要新開帖子。
http://wtbis.cn/doc/workerman/debug/busy-process.html 按照手冊strace下busy的進程，貼下系統調用。

yifenbushe 2022-03-24

按照老師的配置，把event root@gateway:/var/www/ht Workerman[start.php] status
------------------------ Workerman version:4.0.27 start time:2022-03-24 06:17:29 load average: 1.71, 1.4, 0.76 3 workers 9 processes
worker_name YourAppBusinessWorker 0 YourAppGateway 0 Register 0 ------------------------ pid memory listening 4122 4M none 4123 4M none 4124 4M none 4125 4M none 4126 52M 4127 60M 4128 32M 4129 30M 4130 2M text://0.0.0.0:1238 ------------------------ Summary 192M - root@gateway:/var/www/ht Workerman[start.php] status
------------------------ Workerman version:4.0.27 start time:2022-03-24 06:17:29 load average: 1.71, 1.4, 0.76 3 workers 9 processes
worker_name YourAppBusinessWorker 0 YourAppGateway 0 Register 0 ------------------------ pid memory listening 4122 4M none 4123 4M none 4124 4M none 4125 4M none 4126 52M 4127 60M 4128 32M 4129 30M 4130 2M text://0.0.0.0:1238 ------------------------ Summary 192M - 所有代碼注釋掉，只留onConnect()代碼，個人PC開啟的虛擬機，2核2g內存，穩定跑出2.8萬 connections。算是一個階段勝利吧，雖然是理想狀態，多謝老師指導！?。。?br /> ml/GatewayWorker# php start.php status
----------------------GLOBAL STATUS----------------------------------------------------
PHP version:7.4.3
run 0 days 0 hours
event-loop:\Workerman\Events\Event
exit_status exit_count
0
0
0
----------------------PROCESS STATUS---------------------------------------------------
worker_name connections send_fail timers total_request qps status
YourAppBusinessWorker 5 0 0 171279 0 [idle]
YourAppBusinessWorker 5 0 0 168504 0 [idle]
YourAppBusinessWorker 5 0 0 172958 0 [idle]
YourAppBusinessWorker 5 0 0 174293 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 8296 0 0 187990 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 9822 0 0 237910 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 5219 0 0 99483 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 4915 0 0 89428 0 [idle]
Register 8 0 0 8 0 [idle]
----------------------PROCESS STATUS---------------------------------------------------
- 28280 0 0 1301853 0 [Summary]
ml/GatewayWorker# php start.php status
----------------------GLOBAL STATUS----------------------------------------------------
PHP version:7.4.3
run 0 days 0 hours
event-loop:\Workerman\Events\Event
exit_status exit_count
0
0
0
----------------------PROCESS STATUS---------------------------------------------------
worker_name connections send_fail timers total_request qps status
YourAppBusinessWorker 5 0 0 172405 0 [idle]
YourAppBusinessWorker 5 0 0 169656 0 [idle]
YourAppBusinessWorker 5 0 0 174138 0 [idle]
YourAppBusinessWorker 5 0 0 175488 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 8296 0 0 189590 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 9822 0 0 239152 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 5219 0 0 100391 0 [idle]
websocket://0.0.0.0:8282 YourAppGateway 4915 0 0 90327 0 [idle]
Register 8 0 0 8 0 [idle]
----------------------PROCESS STATUS---------------------------------------------------
- 28280 0 0 1311155 0 [Summary]
